Detailed Introduction
Product name: Aluminum
Type: pure aluminum
Melting point: 660℃（1220°F）
Boiling point: 2467℃（4473°F）
Density under 20℃（60°F）: 2.70g/cm3
Application:
Just like silicon, aluminum is a common deoxidizer. Aluminum is also used as grain refiner and occationally as heating material. Aluminum wire permits to achieve high and constant Aluminum recovery. Please note that late aluminum wire feeding during refining can cause solid alumina inclusions to appear which will affect steel castability. Calcium cored wire addition can remedy this situation by transforming solid alumina into liquid calcium-aluminates.
Specification
Dia 9mm cored wire is a kind of medium size wire, which is suitable for the ladle of capacity less than 20 MT and most of cast iron spheroidization
Φ9mm Cored wire Specification
* The above specifications can be adjusted upon request.
Dia 13mm cored wire is a typical size wire for steel industry, which is suitable for all kinds of steel ladles and alloys.
Dia 16mm cored wire is suitable for the alloy adding to the steel ladle of capacity more than 250MT.
Φ13mm - Φ16mm cored wire specification
* The above specifications can be adjusted upon request.
Diameter and fill rate
|
Products
|
Diameter and fill rate（g/m）
|
Application
|
|
Φ9mm
|
Φ13mm
|
Φ16mm
|
|
CaSi
|
110
|
220
|
330
|
Steel desulphurization, deoxidization, inclusion modification and castability
|
|
CaFe
|
122
|
250
|
365
|
Low silicon Steel modification, inclusion modification and steel desulphurization, deoxidization, clogging prevention, castability
|
|
AlCaFe
|
|
150
|
300
|
For low silicon steel application, besides the function of CaFe cored wire but steel deoxidization and grain refinement
|
|
FeTi
|
165
|
370
|
570
|
Microalloying and deoxidization
|
|
FeBo
|
200
|
550
|
825
|
Microalloying
|
|
C
|
|
140
|
205
|
Trimming addition, steel carbon adding
|
|
Mg
|
60
|
140
|
210
|
Desulphurization and nodularisation
|
|
FeSiMg
|
|
235
|
335
|
Nodularisation
|
|
CaSiBa
|
|
225
|
330
|
Inclusion modification
|
|
Al
|
|
200
|
300
|
Deoxidization and grain refinement
|
|
S
|
|
190
|
280
|
Re-sulphurising of free cuting steels
|
|
FeSi
|
|
235
|
335
|
Nodularisation
|
|
The above fill rates can be adjusted upon request. The thickness of steel strip is 0.35~0.50mm, which conforms to the stipulation of GB716、GB3526、GB1323. The weight allowance for each 200g is no more than 2.5%. The joints for each 1000 meters are no more than 3. The cored wires are widely used for calcium treatment and microalloying in the ladle metallurgy, which have the advantages of element precise control and easy use.
|

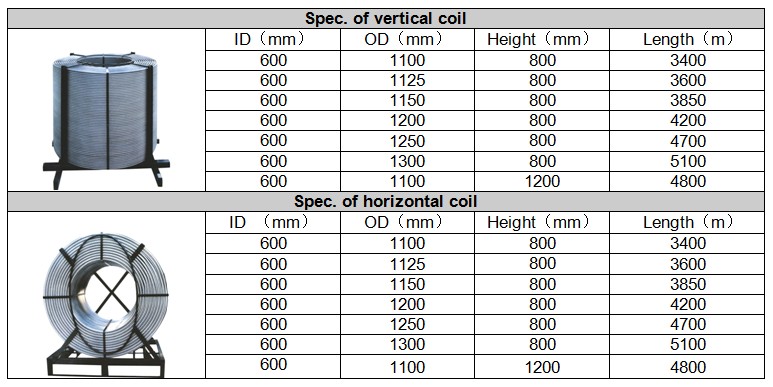

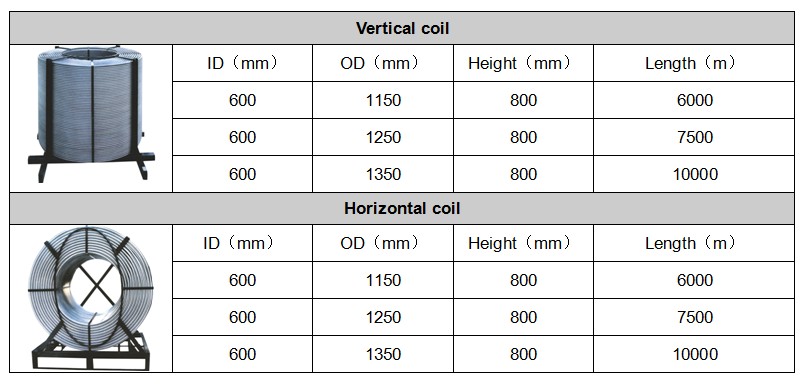

Packing

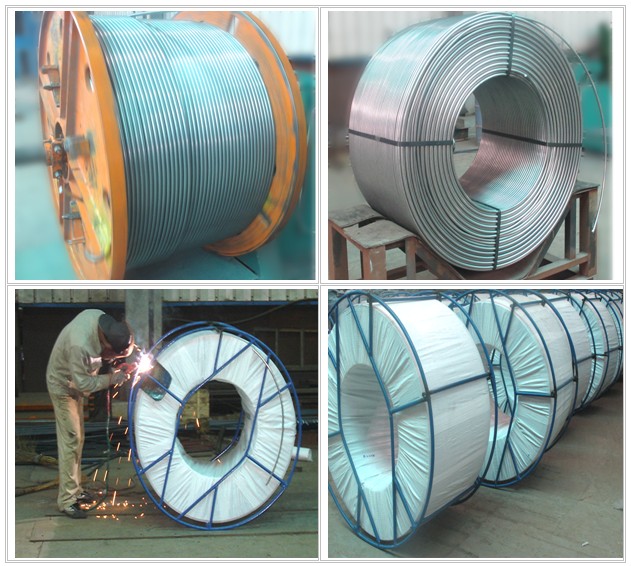

Based on the design of feeding machine, cored wire coils can be made vertically or horizontally, With the special connector, the coils can be fed continuously, The packing also can be customized upon request.
